ROS Racer Blueprint is a ROS-based showcase where multi-agent autonomous racers running F1TENTH software are orchestrated and managed by an Eclipse SDV software stack.

This project provides a ROS 2 communication bridge (inspired by f1tenth_gym_ros) with multi-agent support (up to 4 vehicles) for the F1TENTH gym environment. It is designed for use with Eclipse Muto, an adaptive framework and runtime platform for dynamically composable model-driven software stacks for ROS.

Table of Contents

• Introduction
• Quick Start
• Running the Demo
• Installation
  • Docker / Podman
  • Native on Ubuntu
• Configuration
• ROS Topics
• Troubleshooting
• Contributing
• License and Copyright

Quick Start

The fastest way to get started is using Docker or Podman:

# Clone the repository
git clone https://github.com/eclipse-sdv-blueprints/ros-racer.git
cd ros-racer

# Start the simulation
docker compose up -d --build

# Open in browser
# http://localhost:18080/vnc.html

Running the Demo

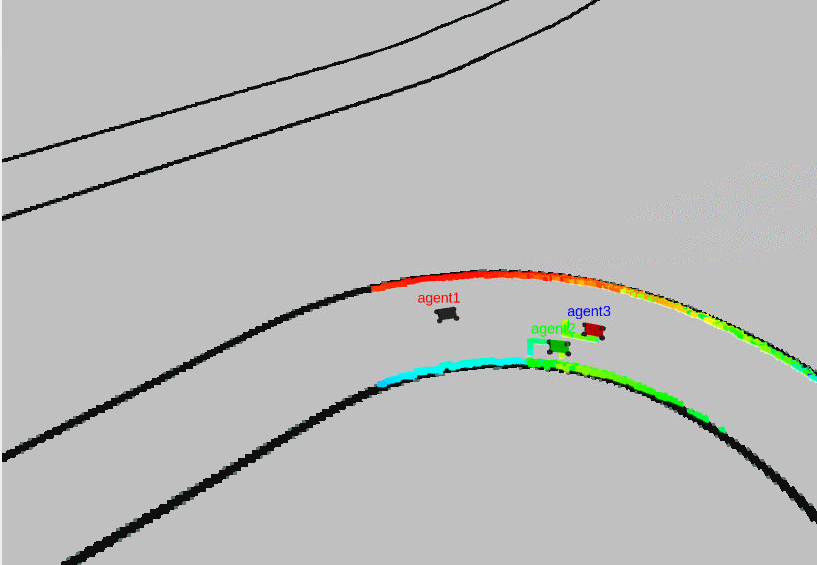

The project includes an interactive demo that showcases Eclipse Muto's OTA deployment capabilities:

./run-demo.sh

This guided demo walks you through:

Phase	Description
Infrastructure Setup	Starts F1TENTH simulation with Muto edge containers
Direct Deployment	Deploy algorithms via ROS topics (Muto native)
OTA Updates	Seamless zero-downtime updates between algorithm versions
Automatic Rollback	Recovery from failed deployments
Fleet Management	Deploy different algorithms to individual vehicles

For detailed instructions, see the Demo Documentation.

Installation

Supported Systems

• Ubuntu 22.04 (native or containerized)
• macOS (via Docker/Podman)
• Windows (via Docker/Podman with WSL2)

Docker / Podman

Prerequisites:

• Docker or Podman with compose support
• Web browser

Steps:

1. Clone the repository:

   git clone https://github.com/eclipse-sdv-blueprints/ros-racer.git
   cd ros-racer

2. Start the services:

   docker compose up -d --build

   This starts: | Service | Description | |---------|-------------| | novnc | Web-based VNC viewer (port 18080) | | sim | F1TENTH gym simulation with RViz | | artifact-server | HTTP server for stack packages | | edge, edge2, edge3 | Eclipse Muto edge devices (racecars) |

3. Open the simulation in your browser:

   http://localhost:18080/vnc.html

4. If RViz doesn't appear, restart the sim service:

   docker compose restart sim

Native on Ubuntu

Prerequisites:

• ROS 2 Humble (installation guide)
• F1TENTH Gym:

  cd $HOME
  git clone https://github.com/f1tenth/f1tenth_gym
  cd f1tenth_gym && pip3 install -e .

Steps:

1. Clone into your colcon workspace:

   cd ~/ros2_ws/src
   git clone https://github.com/eclipse-sdv-blueprints/ros-racer.git

2. Configure the map path in src/f1tenth_gym_ros/config/sim.yaml:

   map_path: /home/<user>/ros2_ws/src/ros-racer/src/f1tenth_gym_ros/maps/levine

   Note: Do not include the file extension. Set map_img_ext separately if using .pgm instead of .png.

3. Install dependencies and build:

   source /opt/ros/humble/setup.bash
   cd ~/ros2_ws
   rosdep install --from-path src --ignore-src -r -y
   colcon build --symlink-install

4. Launch the simulation:

   source /opt/ros/humble/setup.bash
   source install/local_setup.bash
   ros2 launch f1tenth_gym_ros gym_bridge_launch.py

Tip: For remote systems, you'll need X11 forwarding to view RViz.

Configuration

The simulation configuration is at src/f1tenth_gym_ros/config/sim.yaml:

Parameter	Description	Default
map_path	Full path to map file (without extension)	levine
map_img_ext	Map image extension	.png
num_agent	Number of racecars (1-4)	3
racecar_namespace	Base namespace for vehicles	racecar
scan_topic	LiDAR scan topic name	scan
odom_topic	Odometry topic name	odom
drive_topic	Drive command topic name	drive

ROS Topics

Published by Simulation

Topic	Type	Description
/{ns}{i}/scan	sensor_msgs/LaserScan	LiDAR scan for vehicle i
/{ns}{i}/odom	nav_msgs/Odometry	Odometry for vehicle i
/map	nav_msgs/OccupancyGrid	Environment map

Where {ns} is the racecar_namespace parameter and {i} is the vehicle number (1-4).

Subscribed by Simulation

Topic	Type	Description
/{ns}{i}/drive	ackermann_msgs/AckermannDriveStamped	Drive commands for vehicle i
/initialpose	geometry_msgs/PoseWithCovarianceStamped	Reset vehicle pose

Important: When publishing drive commands, set header.frame_id to {ns}{i}/base_link (e.g., racecar1/base_link).

Example drive command:

ros2 topic pub racecar1/drive ackermann_msgs/msg/AckermannDriveStamped \
  "{header: {frame_id: 'racecar1/base_link'}, drive: {speed: 1.0, steering_angle: 0.5}}"

Troubleshooting

RViz doesn't open or crashes

If using Docker and you see Qt/xcb errors:

sim-1 | [rviz2-1] qt.qpa.xcb: could not connect to display novnc:0.0

Solution: Restart the compose services:

docker compose restart

"Invalid frame ID 'map'" warnings

This is normal during startup while TF buffers populate. Wait up to a minute for transforms to stabilize.

Map not visible

Verify map_path in sim.yaml is correct:

• Use the full absolute path
• Do not include the file extension
• Set map_img_ext if using .pgm instead of .png

Racecars visible but not moving

1. Ensure you're publishing to the correct topics (e.g., /racecar1/drive)
2. Verify header.frame_id is set correctly (e.g., racecar1/base_link)
3. Check that drive message speed and steering values are non-zero

Changes not reflected after rebuild

For Docker:

docker compose down
docker compose up -d --build

For native installation:

colcon build --symlink-install
source install/local_setup.bash
