ROS Racer Blueprint

An Eclipse SDV Blueprint for Multi-Agent ROS Racers

status: maintainedissues: NA

Quick Start •Demo •Need Help?


Table of Contents​

Overview​

The ROS Racer Blueprint is an Eclipse Software Defined Vehicle (SDV) demonstration that showcases how cloud-native orchestration and over-the-air (OTA) software delivery can be applied to autonomous racing vehicles. This blueprint brings together several Eclipse SDV technologies to create a realistic, multi-agent autonomous racing simulation that demonstrates the future of vehicle software management.

At its core, this project uses the F1TENTH autonomous racing platform combined with Eclipse Muto - an adaptive framework for dynamically composable, model-driven software stacks in ROS 2 environments. The blueprint demonstrates how multiple autonomous racecars can be orchestrated, updated, and managed in real-time through both direct ROS topic communication and cloud-based orchestration via Eclipse Symphony.

Key Capabilities​

  • Multi-Agent Simulation: Up to 20 autonomous racecars running independently with the F1TENTH gym environment
  • OTA Software Updates: Zero-downtime deployment of new driving algorithms to running vehicles
  • Automatic Rollback: Self-healing fleet that automatically reverts failed deployments
  • Fleet Heterogeneity: Deploy different algorithms to individual vehicles based on role or conditions
  • Dual Orchestration Modes:
    • Direct ROS topic-based deployment (Muto native)
    • Cloud-native orchestration via Eclipse Symphony
  • Visual Feedback: Real-time RViz visualization accessible through web browser (noVNC)

Architecture​

The ROS Racer Blueprint implements a sophisticated multi-layer architecture that separates simulation, edge compute, orchestration, and artifact management concerns.

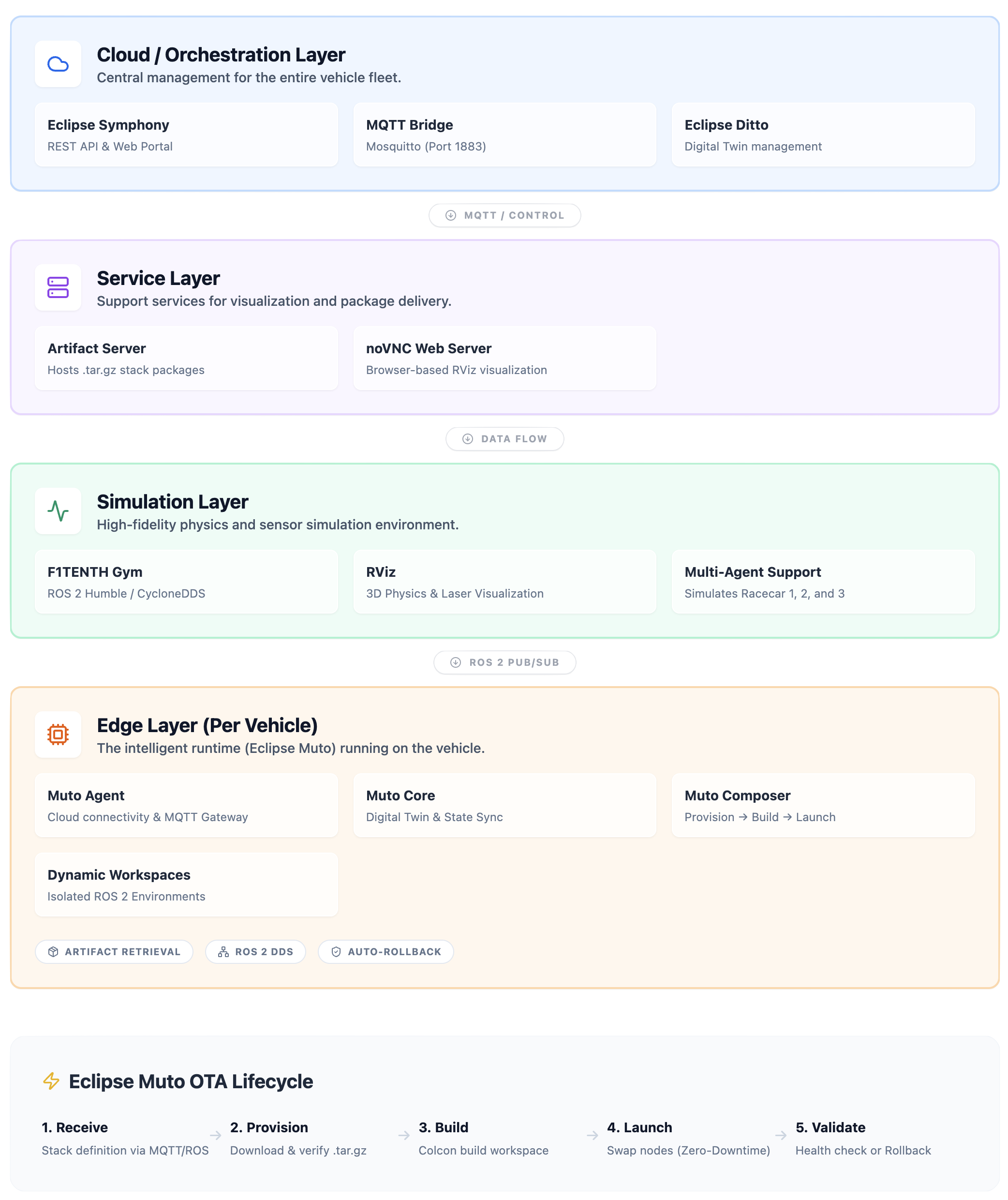

High-Level Architecture Diagram​

Architecture

Component Details​

1. Simulation Layer​

The simulation layer is built on the F1TENTH Gym environment with ROS 2 integration:

  • F1TENTH Gym Simulator (sim container)

    • Provides physics-based simulation of 1/10th scale autonomous racecars
    • Battle-tested multi-agent scenarios with up to 20 vehicles
    • Publishes sensor data (/racecar*/scan, /racecar*/odom) where * is the racecar number
    • Subscribes to control commands (/racecar*/drive)
    • Runs RViz for 3D visualization
    • Uses CycloneDDS for ROS 2 middleware (low-latency, efficient)

  • noVNC Visualization

    • Browser-accessible VNC server (no client installation required)
    • Provides real-time view of RViz visualization
    • Accessible at http://localhost:8080/vnc.html
    • Displays all three vehicles on the Spielberg race track

2. Edge Layer - Eclipse Muto Stack​

Each autonomous vehicle (racecar1, racecar2, racecar3) runs a complete Eclipse Muto stack in its own container. This represents the edge compute environment that would exist on a real vehicle.

Eclipse Muto Components​

Muto Agent

  • Handles cloud connectivity and external orchestration
  • MQTT Gateway: Bidirectional bridge to cloud MQTT brokers (Eclipse Ditto, Symphony)
  • Commands Plugin: Enables remote execution of ROS commands (topic list, node info, parameter get, etc.)
  • Symphony Provider: Integration point for Eclipse Symphony orchestration
  • Listens on vehicle-specific topics (e.g., /racecar1_muto/stack)

Muto Core

  • Digital Twin: Maintains a synchronized representation of vehicle state
  • Publishes vehicle attributes, status, and capabilities
  • Integration with Eclipse Ditto for cloud-side digital twin management

Muto Composer

  • The heart of dynamic software composition and OTA updates

  • Main Composer: Orchestrates the full stack lifecycle

    • Receives stack definitions via ROS topics or MQTT
    • Coordinates provision → build → launch sequence
    • Manages workspace states and transitions
    • Implements automatic rollback on failure

  • Provision Plugin:

    • Downloads stack packages from artifact server (HTTP)
    • Validates checksums (SHA256)
    • Extracts archives to workspace directories
    • Manages ~/.muto/workspaces/{stack_name}/ structure

  • Compose Plugin:

    • Builds ROS 2 workspaces using colcon build
    • Resolves dependencies via rosdep
    • Creates isolated build environments per stack

  • Launch Plugin:

    • Starts/stops ROS nodes based on stack launch files
    • Monitors node health and lifecycle
    • Implements graceful shutdown and cleanup
    • Detects failures and triggers rollback

Dynamic Workspaces

  • Each deployed stack creates a workspace under ~/.muto/workspaces/
  • Workspaces are self-contained ROS 2 packages with:
    • Source code (extracted from .tar.gz)
    • Build artifacts (colcon build output)
    • Launch scripts (e.g., run.sh)
    • Configuration files
  • Multiple workspaces can coexist; Composer manages which is active

3. Service Layer​

Artifact Server

  • Simple Python HTTP server serving on port 9090
  • Hosts stack packages as .tar.gz archives:
    • gap_follower_conservative.tar.gz
    • gap_follower_balanced.tar.gz
    • gap_follower_aggressive.tar.gz
    • gap_follower_broken.tar.gz (intentionally broken for rollback demo)
  • Each package contains ROS 2 workspace with driving algorithm implementation
  • Checksums in stack definitions ensure integrity

4. Cloud/Orchestration Layer (Optional)​

Eclipse Symphony

  • Cloud-native orchestration platform for edge deployments
  • Symphony API: REST API for managing solutions, instances, targets
  • Symphony Portal: Web dashboard for fleet visualization
  • MQTT Bridge: Mosquitto broker connects Symphony to Muto agents
  • Abstraction Model:
    • Solutions: Versioned software packages (wraps Muto stacks)
    • Targets: Represents edge devices (vehicles)
    • Instances: Links solutions to targets, triggering deployment

Eclipse Muto Integration​

Eclipse Muto is the cornerstone of this blueprint, providing the intelligent edge runtime that enables dynamic, cloud-native software management for ROS 2 systems.

What is Eclipse Muto?​

Eclipse Muto is an adaptive framework and runtime platform for building dynamically composable, model-driven software stacks in ROS-based robotic systems. It brings cloud-native DevOps practices to the edge, enabling:

  • Dynamic Composition: Load, build, and launch ROS packages at runtime without redeployment
  • OTA Updates: Zero-downtime software updates via stack definitions
  • Automatic Rollback: Self-healing behavior when deployments fail
  • Digital Twin Integration: Synchronized cloud-side representation of edge devices
  • Multi-Protocol Connectivity: Support for MQTT, HTTP, and ROS 2 DDS
  • Model-Driven: Stack definitions as declarative JSON/YAML

Muto in the ROS Racer Blueprint​

In this blueprint, Muto transforms traditional static ROS deployments into a dynamic, cloud-managed system:

1. Stack-Based Deployment Model​

Instead of baking algorithms into container images, Muto uses stack definitions - lightweight JSON descriptors:

{
  "metadata": {
    "name": "gap_follower_balanced",
    "version": "1.1.0",
    "content_type": "stack/archive"
  },
  "launch": {
    "url": "http://artifact-server:9090/gap_follower_balanced.tar.gz",
    "properties": {
      "algorithm": "sha256",
      "checksum": "a1b2c3d4...",
      "launch_file": "run.sh",
      "flatten": true
    }
  }
}

This definition tells Muto:

  • What to download (url)
  • How to verify it (checksum)
  • How to launch it (launch_file)
  • Metadata for versioning and tracking

2. OTA Deployment Flow​

When a stack is deployed, Muto executes this sequence:

1. Stack Definition Received (ROS topic or MQTT)
   └─> Composer validates and queues

2. Provisioning Phase
   └─> Provision Plugin downloads .tar.gz from artifact server
   └─> Validates SHA256 checksum
   └─> Extracts to ~/.muto/workspaces/{stack_name}/

3. Build Phase
   └─> Compose Plugin runs 'colcon build'
   └─> Resolves dependencies
   └─> Creates install/ directory with ROS 2 artifacts

4. Launch Phase
   └─> Launch Plugin stops previous stack (graceful shutdown)
   └─> Sources new workspace setup.bash
   └─> Executes launch_file (e.g., run.sh)
   └─> Monitors node health

5. Validation
   └─> If nodes crash or fail to start within timeout:
       └─> Automatic rollback to previous working stack
   └─> If successful:
       └─> New stack becomes active
       └─> Digital twin updated with new state

3. Zero-Downtime Updates​

Muto achieves zero-downtime by:

  • Building new workspaces alongside running ones (no interruption)
  • Only switching to the new stack after successful build
  • Gracefully terminating old nodes before starting new ones
  • Maintaining state continuity through ROS 2 parameter persistence

4. Automatic Rollback​

The gap_follower_broken stack demonstrates Muto's self-healing by intentionally deploying a broken algorithm:

5. Fleet Management​

Muto's namespace-based architecture enables fleet-wide or targeted deployments:

Each vehicle independently:

  • Receives stack on its /{vehicle_name}_muto/stack topic
  • Executes full deployment pipeline
  • Manages its own workspace state
  • Reports status via digital twin

6. Digital Twin Synchronization​

Muto Core maintains a digital twin for each vehicle:

  • Attributes: Vehicle ID, capabilities, hardware specs
  • State: Current stack, version, deployed workspaces
  • Telemetry: CPU, memory, network status
  • Events: Deployment history, rollback events, errors

This twin synchronizes with Eclipse Ditto (cloud-side digital twin platform), enabling:

  • Fleet-wide visibility into deployment status
  • Historical audit trail
  • Conditional deployments based on vehicle state
  • Integration with Symphony for orchestration

7. Multi-Protocol Gateway​

Muto's MQTT Gateway bridges multiple communication domains:

Cloud (MQTT) ←→ Muto Agent ←→ ROS 2 (DDS)
                    ↕
              Digital Twin (Ditto)
                    ↕
           Symphony (Orchestration)

This enables:

  • Remote command execution via MQTT
  • Stack deployment from cloud or local ROS topics
  • Telemetry streaming to cloud
  • Symphony-based orchestration

Key Scenarios​

Scenario 1: Initial Deployment​

Deploy a conservative driving algorithm to all three vehicles for initial testing.

Scenario 2: Progressive OTA Updates​

Incrementally increase performance: conservative → balanced → aggressive, demonstrating seamless transitions.

Scenario 3: Automatic Rollback​

Deploy a broken algorithm and watch Muto automatically recover to the previous version.

Scenario 4: Heterogeneous Fleet​

Assign different algorithms to vehicles based on their role (lead car = conservative, middle = aggressive, rear = balanced).

Scenario 5: Symphony Orchestration​

Use Eclipse Symphony's REST API to manage deployments at scale, demonstrating cloud-native fleet management.

Technology Stack​

  • ROS 2 Humble: Robot Operating System for autonomous vehicle software
  • Eclipse Muto: Adaptive framework for dynamic ROS stack composition
  • Eclipse Symphony: Cloud-native orchestration platform (optional)
  • Eclipse Ditto: Digital twin platform for IoT/edge devices
  • F1TENTH Gym: High-fidelity autonomous racing simulator
  • CycloneDDS: High-performance DDS implementation for ROS 2
  • Python 3.11: Stack deployment scripts and HTTP server
  • Docker/Podman: Container runtime for edge and simulation environments
  • MQTT (Mosquitto): Lightweight messaging for cloud-edge communication
  • noVNC: Browser-based VNC for accessible visualization

Benefits Demonstrated​

  1. Agility: Deploy new algorithms in minutes, not hours
  2. Safety: Automatic rollback prevents fleet-wide failures
  3. Flexibility: Mix different algorithms across fleet for optimal performance
  4. Observability: Real-time state via digital twins
  5. Cloud-Native: Standards-based orchestration (Symphony, MQTT, ROS 2)
  6. Developer Productivity: Test locally, deploy identically to edge
  7. Zero-Downtime: Seamless transitions between software versions

Getting Started​

For detailed instructions, see Quickstart and demo/README.md.

Quick Start: Scaling to 20 Racecars​

The system supports scaling from 3 up to 20 racecars with configurable ROS middleware.

Configuration Options​

VariableDefaultOptionsDescription
NUM_AGENTS31-20Number of racecars to spawn
DEPLOY_STAGGER0.50.0-2.0Delay between vehicle deployments (seconds)

Basic Usage​

# Default: 3 cars
python3 scripts/generate-compose.py > docker-compose.yml
docker compose up --build

# Scale to 10 cars
NUM_AGENTS=10 python3 scripts/generate-compose.py > docker-compose.yml
docker compose up --build

# Scale to 20 cars
NUM_AGENTS=20 python3 scripts/generate-compose.py > docker-compose.yml
docker compose up --build

Deploy with Varied Driving Styles​

Generate per-vehicle stacks with cycling driving styles (aggressive → balanced → conservative):

# Generate stack files for all vehicles
NUM_AGENTS=20 python3 scripts/generate-gap-follower-stacks.py

# Deploy to all vehicles with staggered timing
NUM_AGENTS=20 python3 demo/scripts/deploy-stack-fleet.py

Resource Requirements (20 agents)​

ComponentCPUMemory
sim8.05GB
edge (×20)0.5 each512MB each
Total~18 cores~15GB

Note: Sim resources scale automatically (2 + 0.3 per agent CPUs, 2GB + 150MB per agent).

Learn More​

Constraints​

  • Initial Racecar & Lap spawn points: They are hardcoded according to example_map. When you change the map, it will fumble, you'd have to readjust the default spawning points.

Contributing​

Contributions are welcome! Please read our contributing guidelines and submit pull requests to the GitHub repository.

Support​

This project is licensed under the Eclipse Public License 2.0. See LICENSE for details.

Portions derived from f1tenth_gym_ros are licensed under the MIT License.
